carbon fabric stabilized, carbon fiber 3k tr30s, carbon fabric twill 285 g

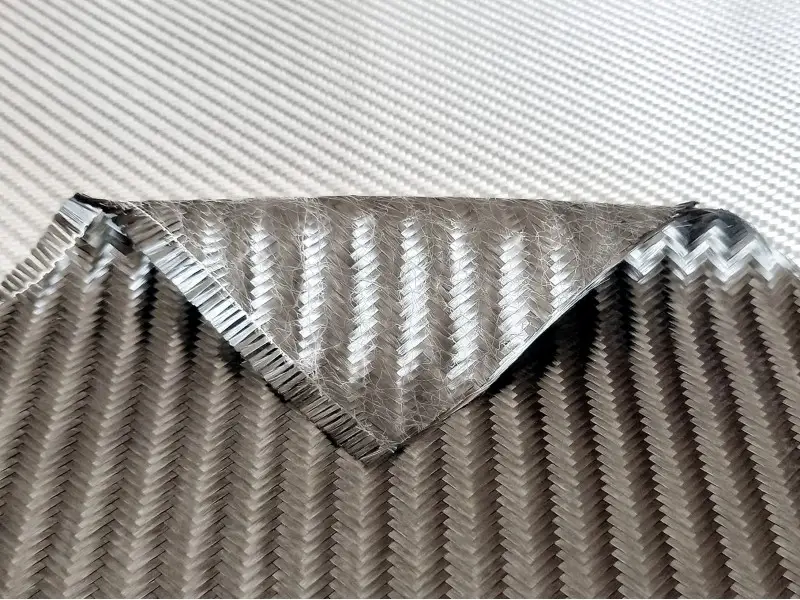

This fabric is treated on one side with resin compatible fibrous binder. This treatment keeps the reinforcement perfectly aligned, but also drapable. It also makes the fabric easy to handle, and ready-made products show a professional look, (with perfect, undamaged weave on the finished product.)
TECHNICAL CHARACTERISTICS
Areal weight: 297 g / m2
Weaving style: Twill 4X4
Width: 1.00 meter
Weaving style: Twill 4X4
Width: 1.00 meter
Warp type of yarn: 3K TR30S carbon fiber
Weft type of yarn: 3K TR30S carbon fiber
Warp reinforcement ratio: 47.9%
Weft reinforcement ratio: 47.9%
Warp thread count: 7 ends (threads) / cm
Weft thread count: 7 ends (threads) / cm
Weft type of yarn: 3K TR30S carbon fiber
Warp reinforcement ratio: 47.9%
Weft reinforcement ratio: 47.9%
Warp thread count: 7 ends (threads) / cm
Weft thread count: 7 ends (threads) / cm
Binder: Copolyamide 12 g / m2, 4.0%
TYPICAL MECHANICAL PROPERTIES OF 3K TR30S CARBON FIBER
Tensile strength (MPa): 4410
Tensile modulus (GPa): 235
Elongation at break (%): 1.9

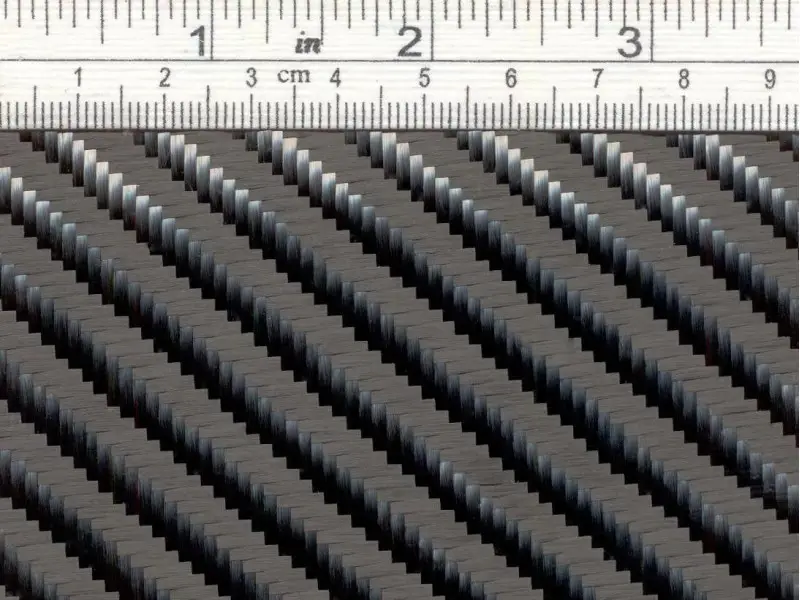

Please click on the picture, for a closer view of the fabric's real size, confirmed by the measuring tape on the top side of the picture. To realize the actual size with precision, please observe the thread count (ends (threads) / cm) feature mentioned above.
DISCLAIMER
All information herein is given for guidance and general information purposes only, represents typical properties, and should not be used for specification limits purposes or basis for design. Fibremax Ltd reserves the right to make modifications on fabrics, change yarns, specifications, and all information given herein, without notice. It is only on written certificates and agreements that we provide our customers with warrants for the quality and/or advise for the suitability of products for particular uses. Data sheets and certificates of conformity are promptly provided upon request with roll serial number, for all 100 lm rolls.
