carbon fabric stabilized, carbon fibre 6k hta40, carbon fabric satin 370 g
This fabric is treated on one side with resin compatible fibrous binder. This treatment keeps the reinforcement perfectly aligned, but also drapable. It also makes the fabric easy to handle, and ready-made products show a professional look, (with perfect, undamaged weave on the finished product.)
TECHNICAL CHARACTERISTICS
Areal weight: 370 g / m2
Weaving style: Satin 5H
Available width: 1.27 meters
Weaving style: Satin 5H
Available width: 1.27 meters
Warp type of yarn: 6K HTA40 carbon fiber
Weft type of yarn: 6K HTA40 carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 4.1 ends (threads) / cm
Weft thread count: 4.1 ends (threads) / cm
Binder: ep-binder 10-15 g / m2
Weft type of yarn: 6K HTA40 carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 4.1 ends (threads) / cm
Weft thread count: 4.1 ends (threads) / cm
Binder: ep-binder 10-15 g / m2
TYPICAL MECHANICAL PROPERTIES OF 6K HTA40 CARBON FIBER
Tensile strength (MPa): 4100
Tensile modulus (GPa): 240
Elongation at break (%): 1.7

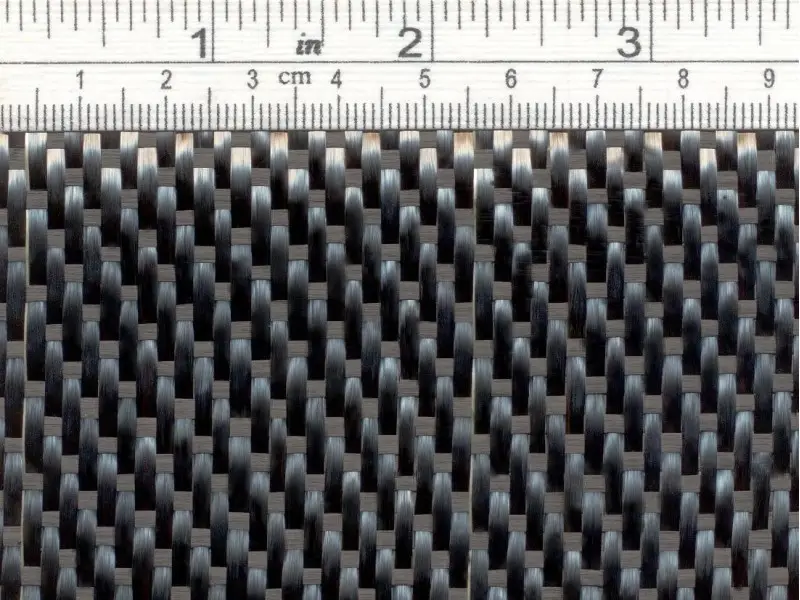

Please click on picture, for a closer view to the fabric's real size.
