aramid ballistic fabric, kevlar fiber k159 330dtex, kevlar fabric plain 158 g
This fabric is specially made for ballistic and spike penetration protection.
TECHNICAL CHARACTERISTICS
Areal weight: 158 g / m2
Weaving style: Plain
Available widths: 1.60 meters
Areal weight: 158 g / m2
Weaving style: Plain
Available widths: 1.60 meters
Warp type of yarn: Αramid fiber Kevlar K159, 330 dtex
Weft type of yarn: Αramid fiber Kevlar K159, 330 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 23 ends (threads) / cm
Weft thread count: 23 ends (threads) / cm
Weft type of yarn: Αramid fiber Kevlar K159, 330 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 23 ends (threads) / cm
Weft thread count: 23 ends (threads) / cm
Indicative spike protection results: NIJ 0115.00 lev. SP51 (energy 24J with max penetration 7mm and energy 36J with max perforation 20mm), 13 layers

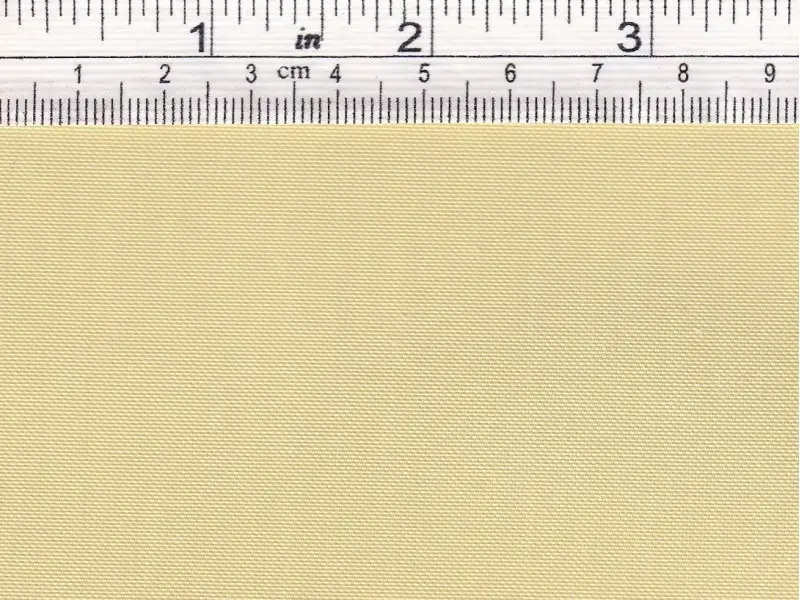

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
