170gsm 2200 Aramid Twill, 1210 dtex
$18.00 /m2
170gsm 2×2 aramid twill made with 2200 aramid fiber at 1210 dtex. Supplied at 1.20 m width with 6.54 warp ends/cm and 6.60 weft ends/cm.
In stock
aramid fabric, aramid fiber 2200 1210 dtex, aramid fabric twill 170 g
TECHNICAL CHARACTERISTICS
Areal weight: 170 g / m2
Weaving style: Twill 2X2
Width: 1.20 meters
Weaving style: Twill 2X2
Width: 1.20 meters
Warp type of yarn: 2200 aramid fiber, 1210 dtex
Weft type of yarn: 2200 aramid fiber, 1210 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.54 ends (threads) / cm
Weft thread count: 6.60 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 1210 dtex
Tensile strength (MPa): 3157
Tensile modulus (GPa): 108
Elongation at break (%): 2.80
Weft type of yarn: 2200 aramid fiber, 1210 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.54 ends (threads) / cm
Weft thread count: 6.60 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 1210 dtex
Tensile strength (MPa): 3157
Tensile modulus (GPa): 108
Elongation at break (%): 2.80

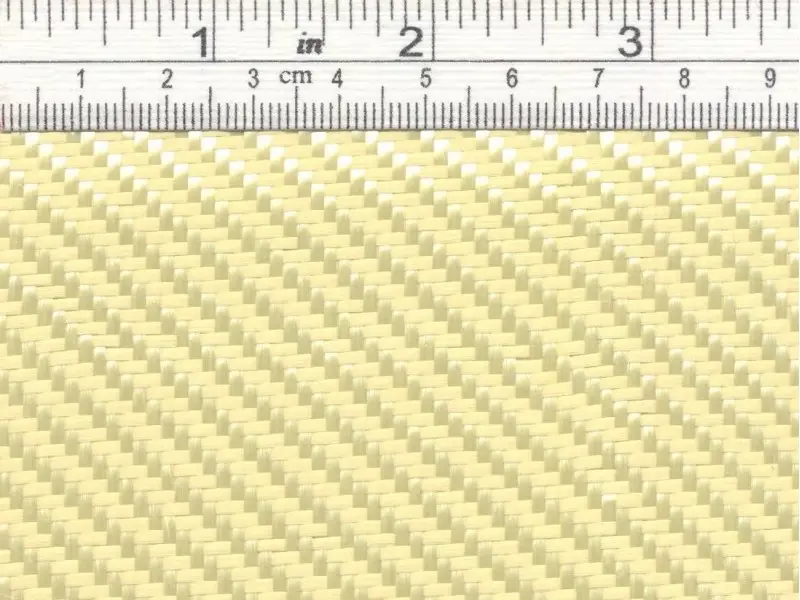

Please click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
| Weight | 170 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
