aramid fabric, aramid fiber 2200 3220 dtex, aramid fabric twill 300 g
TECHNICAL CHARACTERISTICS
Areal weight: 300 g / m2
Weaving style: Twill 2X2
Width: 1.00 meter
Weaving style: Twill 2X2
Width: 1.00 meter
Warp type of yarn: 2200 aramid fiber, 3220 dtex
Weft type of yarn: 2200 aramid fiber, 3220 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.7 ends (threads) / cm
Weft thread count: 6.7 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 3220 dtex
Tensile strength (MPa): 2930
Tensile modulus (GPa): 102
Elongation at break (%): 2.9
Weft type of yarn: 2200 aramid fiber, 3220 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.7 ends (threads) / cm
Weft thread count: 6.7 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 3220 dtex
Tensile strength (MPa): 2930
Tensile modulus (GPa): 102
Elongation at break (%): 2.9

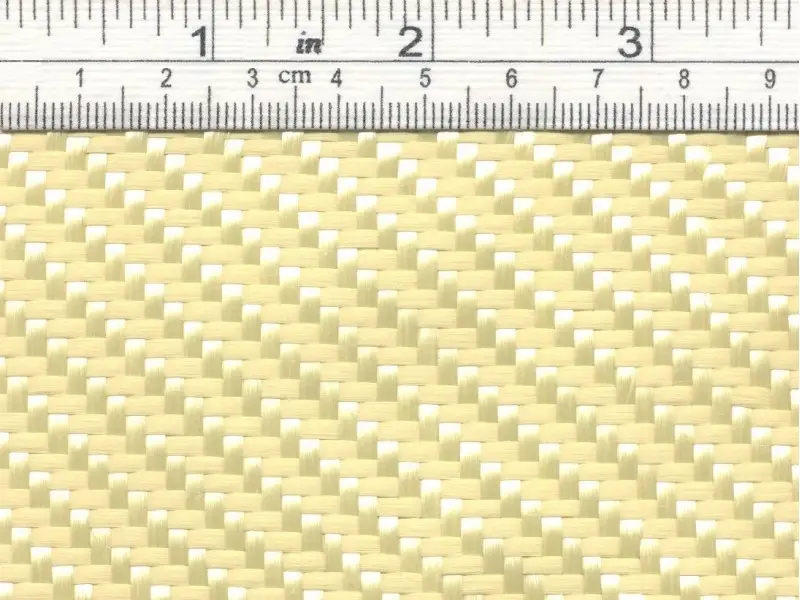

Please click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
