aramid fabric plain 290g
$37.54 /m2
aramid fabric plain 290g
Product type: composite reinforcement supplied to the listed weave, areal weight and size. Key specifications: Areal weight: 293 g / m 2.
In stock
aramid ballistic fabric, aramid fiber 1100 dtex, aramid fabric plain 290 g
This fabric is specially made for ballistic and blunt trauma protection. It exhibits great relative flexibility.
TECHNICAL CHARACTERISTICS
Areal weight: 293 g / m2
Weaving style: Plain
Available widths: 1.60 meters
Warp type of yarn: Aramid fiber, 1100 dtex
Weft type of yarn: Aramid fiber, 1100 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.4 ends (threads) / cm
Weft thread count: 6.4 ends (threads) / cm
Areal weight: 293 g / m2
Weaving style: Plain
Available widths: 1.60 meters
Warp type of yarn: Aramid fiber, 1100 dtex
Weft type of yarn: Aramid fiber, 1100 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.4 ends (threads) / cm
Weft thread count: 6.4 ends (threads) / cm
Indicative use: 80% depth of the layers in the back, 2 layers

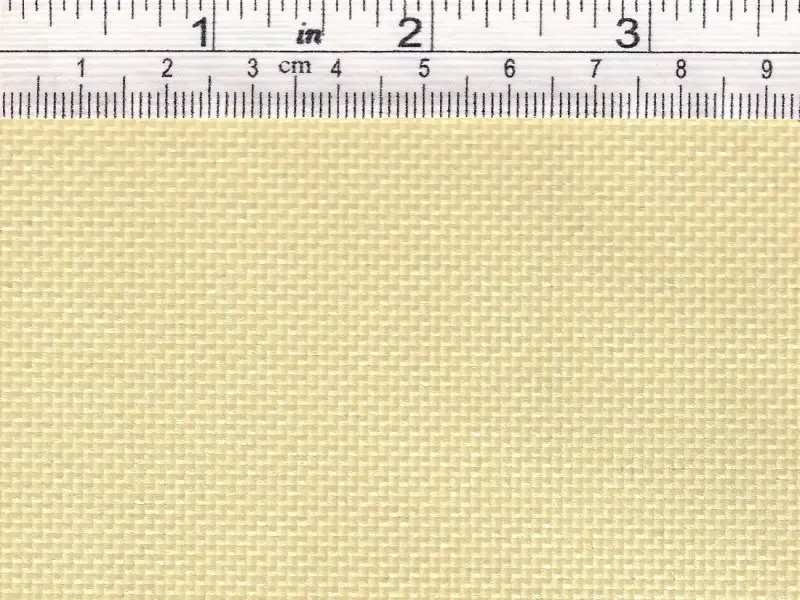

Please click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
| Weight | 290 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
