aramid fabric plain 170g
$18.00 /m2
aramid fabric plain 170g
Product type: composite reinforcement supplied to the listed weave, areal weight and size. Key specifications: Areal weight: 170 g / m 2; Width: 1.20 meters.
In stock
aramid fabric, aramid fiber 1111 1260 dtex, aramid fabric plain 170 g
TECHNICAL CHARACTERISTICS
Areal weight: 170 g / m2
Weaving style: Plain
Width: 1.20 meters
Weaving style: Plain
Width: 1.20 meters
Warp type of yarn: 1111 aramid fiber, 1260 dtex
Weft type of yarn: 1111 aramid fiber, 1260 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.7 ends (threads) / cm
Weft thread count: 6.7 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 1111 ARAMID FIBER, 1260 dtex
Tensile strength (MPa): 2987
Tensile modulus (GPa): 91
Elongation at break (%): 3.10
Weft type of yarn: 1111 aramid fiber, 1260 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.7 ends (threads) / cm
Weft thread count: 6.7 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 1111 ARAMID FIBER, 1260 dtex
Tensile strength (MPa): 2987
Tensile modulus (GPa): 91
Elongation at break (%): 3.10

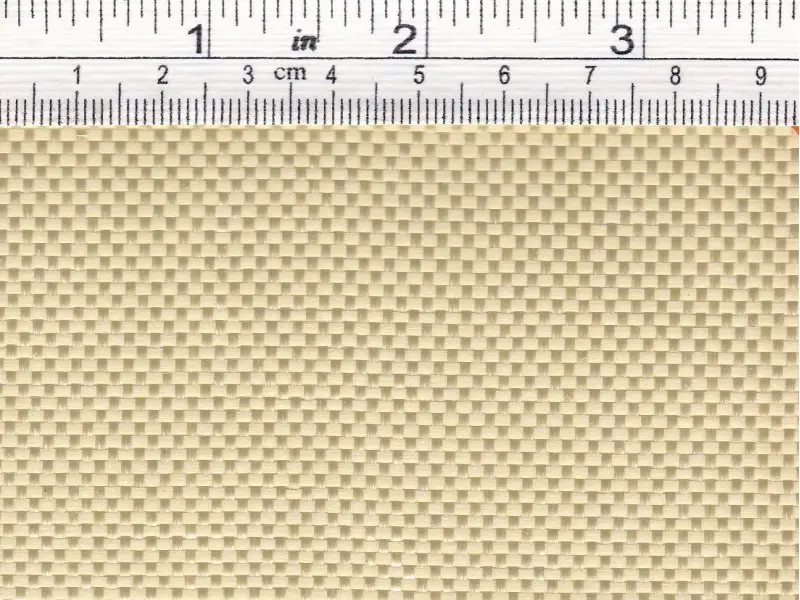

Please click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
| Weight | 170 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
