aramid fabric twill 220g
$20.47 /m2
aramid fabric twill 220g
Product type: composite reinforcement supplied to the listed weave, areal weight and size. Key specifications: Areal weight: 220 g / m 2; Width: 1.20 meters.
In stock
aramid fabric, aramid fiber 2200 1610 dtex, aramid fabric twill 220 g
TECHNICAL CHARACTERISTICS
Areal weight: 220 g / m2
Weaving style: Twill 2X2
Width: 1.20 meters
Warp type of yarn: 2200 aramid fiber, 1610 dtex
Weft type of yarn: 2200 aramid fiber, 1610 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 7.3 ends (threads) / cm
Weft thread count: 7.3 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 1610 dtex
Tensile strength (MPa): 3014
Tensile modulus (GPa): 105
Elongation at break (%): 2.7
Weaving style: Twill 2X2
Width: 1.20 meters
Warp type of yarn: 2200 aramid fiber, 1610 dtex
Weft type of yarn: 2200 aramid fiber, 1610 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 7.3 ends (threads) / cm
Weft thread count: 7.3 ends (threads) / cmTYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 1610 dtex
Tensile strength (MPa): 3014
Tensile modulus (GPa): 105
Elongation at break (%): 2.7

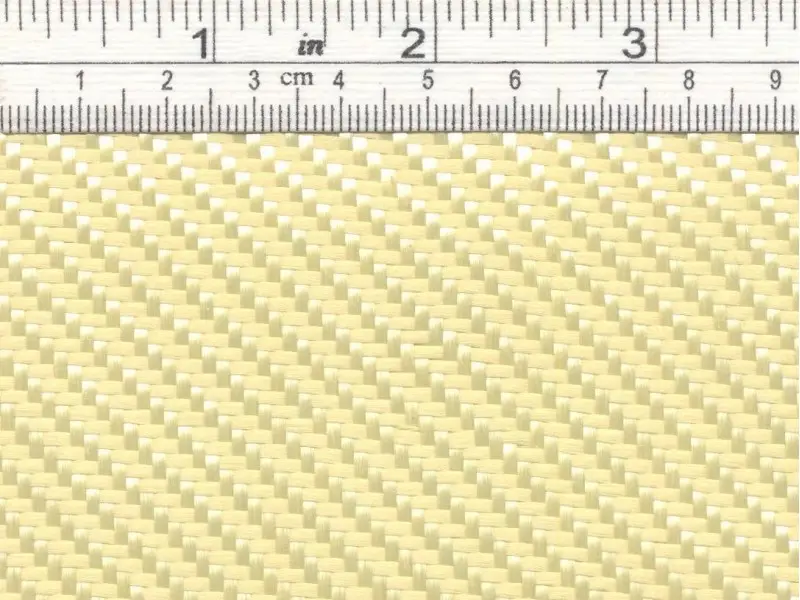

Please click on picture, for a closer view to the fabric’s real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
| Weight | 220 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
