aramid fabric, aramid fiber 2200 1610 dtex, aramid fabric plain 260 g
TECHNICAL CHARACTERISTICS
Areal weight: 258 g / m2
Weaving style: Plain
Width: 1.50 meters
Warp type of yarn: 2200 aramid fiber, 1610 dtex
Weft type of yarn: 2200 aramid fiber, 1610 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 8 ends (threads) / cm
Weft thread count: 7 ends (threads) / cm
Weaving style: Plain
Width: 1.50 meters
Warp type of yarn: 2200 aramid fiber, 1610 dtex
Weft type of yarn: 2200 aramid fiber, 1610 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 8 ends (threads) / cm
Weft thread count: 7 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 1610 dtex
Tensile strength (MPa): 3014
Tensile modulus (GPa): 105
Elongation at break (%): 2.7

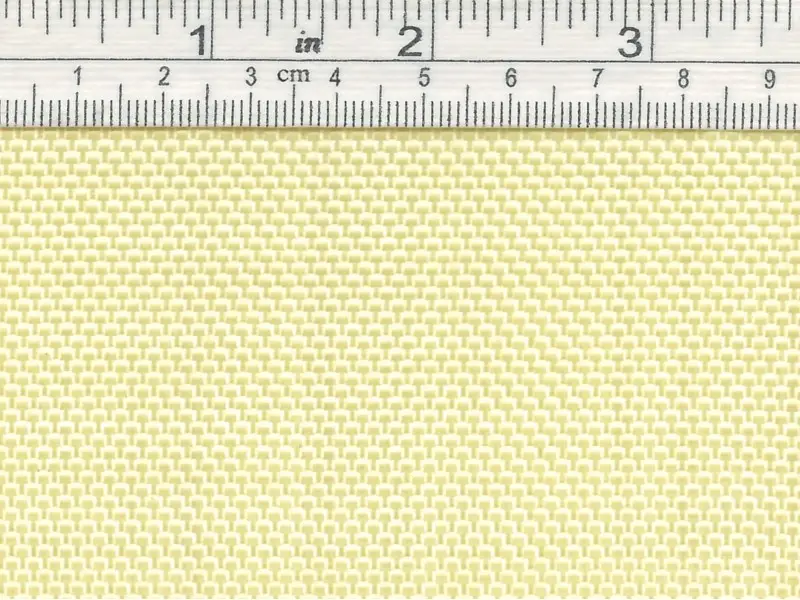

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
