aramid fiberglass fabric, fiberglass 600, aramid fiber 2420, aramid fiberglass fabric twill 390 g
TECHNICAL CHARACTERISTICS
Areal weight: 390 g / m2
Weaving style: Twill 2X2
Width: 1.20 and 1.27 meters
Weaving style: Twill 2X2
Width: 1.20 and 1.27 meters
Warp type of yarn: 3 X glass 600 + 2 X aramid 2420
Weft type of yarn: 3 X glass 600 + 2 X aramid 2420
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 4.8 ends (threads) / cm
Weft thread count: 4.8 ends (threads) / cm
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 4.8 ends (threads) / cm
Weft thread count: 4.8 ends (threads) / cm

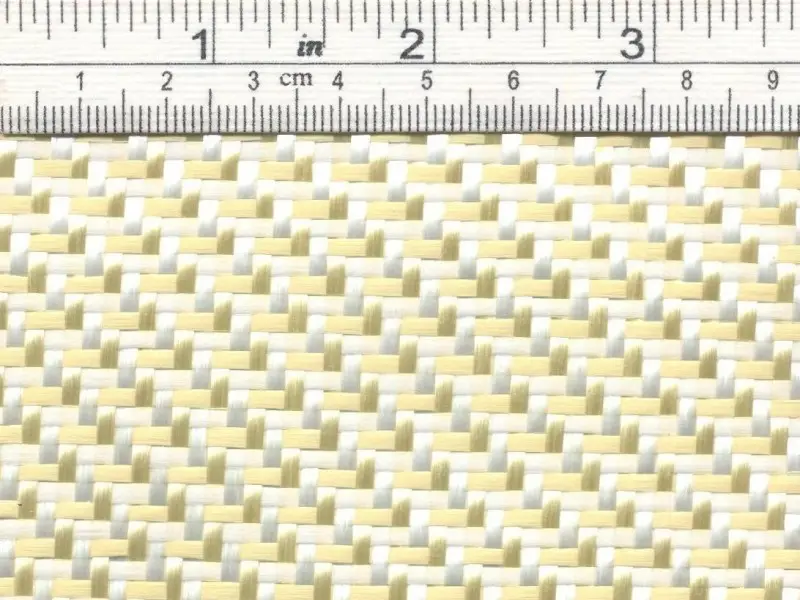

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
