carbon aramid fabric, carbon fiber 3k tr30s, aramid fiber, carbon aramid fabric twill 225 g
TECHNICAL CHARACTERISTICS
Areal weight: 225 g / m2
Weaving style: Twill 3X1
Width: 1.00 meters
Warp type of yarn: 3K TR30S carbon fiber
Weft type of yarn: 1111 aramid fiber, 1260 dtex
Warp reinforcement ratio: 63%
Weft reinforcement ratio: 37%
Warp thread count: 7.0 ends (threads) / cm
Weft thread count: 6.7 ends (threads) / cm
Weaving style: Twill 3X1
Width: 1.00 meters
Warp type of yarn: 3K TR30S carbon fiber
Weft type of yarn: 1111 aramid fiber, 1260 dtex
Warp reinforcement ratio: 63%
Weft reinforcement ratio: 37%
Warp thread count: 7.0 ends (threads) / cm
Weft thread count: 6.7 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF FIBERS USED
Carbon
Tensile strength (MPa): 4410
Tensile modulus (GPa): 235
Elongation at break (%): 1.9
Aramid
Tensile strength (MPa): 2987
Tensile modulus (GPa): 91
Elongation at break (%): 3.10

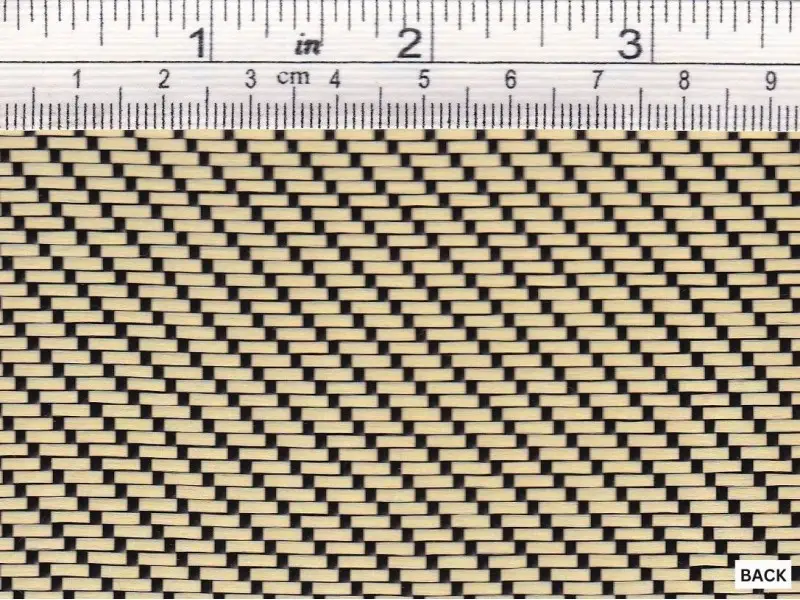

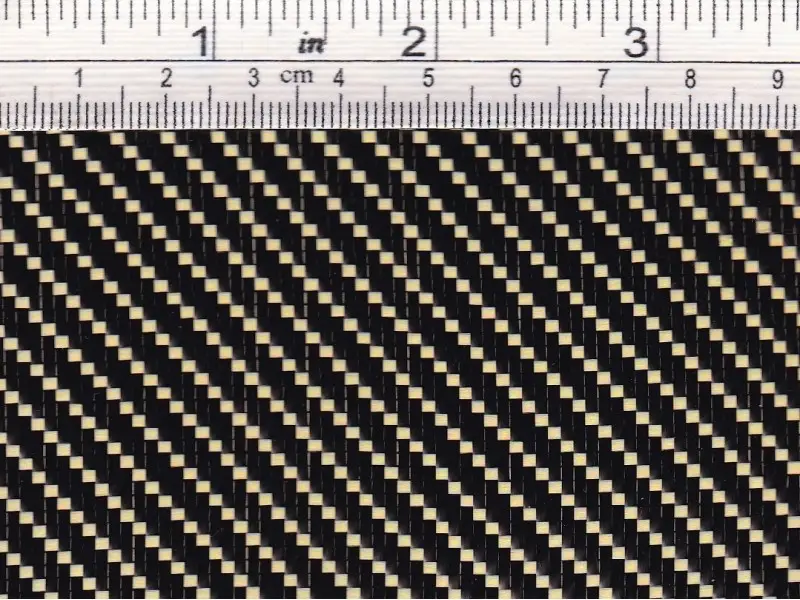

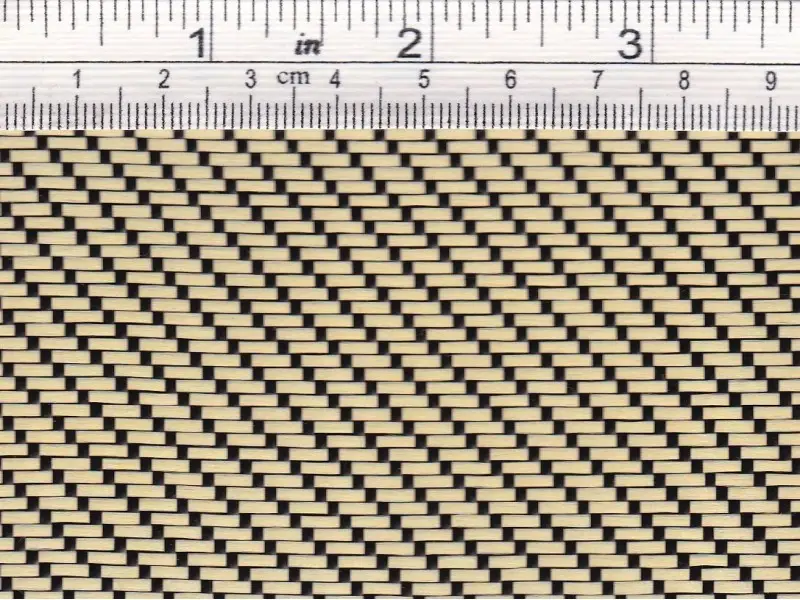

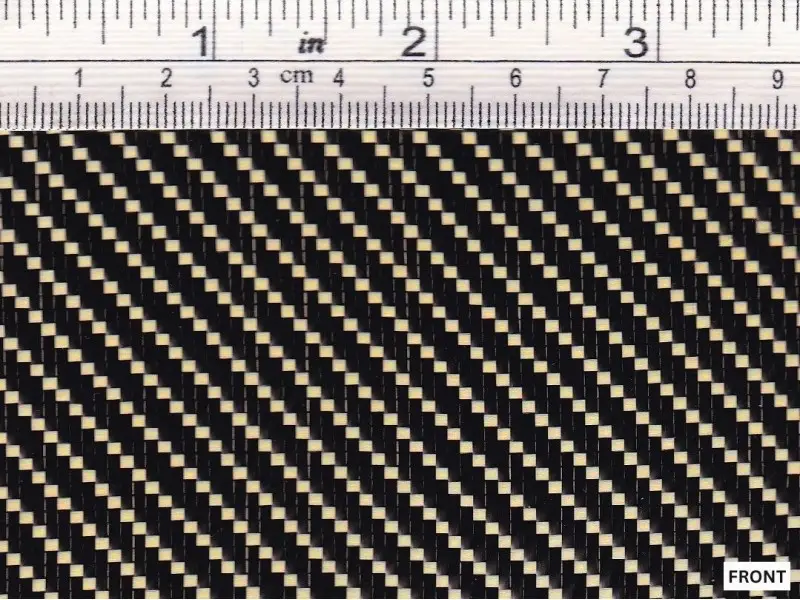

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
