TECHNICAL CHARACTERISTICS
Areal weight: 216 g / m2
Weaving style: Unidirectional, woven
Width: 1.00 meters
Warp type of yarn: 3K T300 carbon fiber + E-glass 300tex
Weft type of yarn: 3K T300 carbon fiber + E-glass 300tex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 4.5 ends (threads) / cm
Weft thread count: 4.5 ends (threads) / cm
Weaving style: Unidirectional, woven
Width: 1.00 meters
Warp type of yarn: 3K T300 carbon fiber + E-glass 300tex
Weft type of yarn: 3K T300 carbon fiber + E-glass 300tex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 4.5 ends (threads) / cm
Weft thread count: 4.5 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF FIBERS USED
Carbon
Tensile strength (MPa): 3530
Tensile modulus (GPa): 230
Elongation at break (%): 1.5

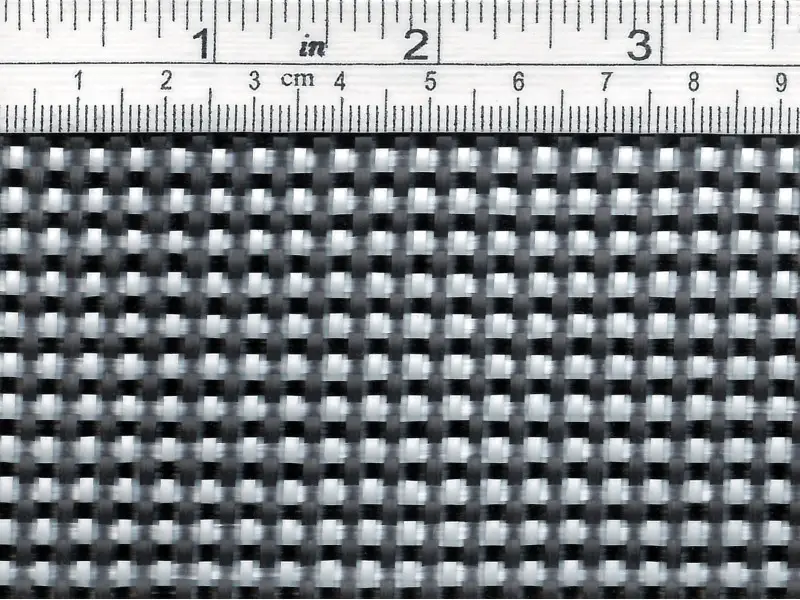

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
