carbon glass fabric, carbon fiber 50k, fiberglass e glass, carbon glass fabric triaxial 900 g
TECHNISCHE EIGENSCHAFTEN
Areal weight: 906 g / m2
Weaving style: Triaxial -45/-85/+25
Width: 1.27 meters
-45/-85 ply: E-glass, 43.9% (397 g / m2), gauge 1
+25 ply: 50K carbon fiber, 55.8% (506 g / m2), gauge 1.45
Stitching fiber: polyester 35 dtex, 0.3% (3 g / m2), length 2.5 mm, gauge 6, 1/2 Pillar Tricot
Weaving style: Triaxial -45/-85/+25
Width: 1.27 meters
-45/-85 ply: E-glass, 43.9% (397 g / m2), gauge 1
+25 ply: 50K carbon fiber, 55.8% (506 g / m2), gauge 1.45
Stitching fiber: polyester 35 dtex, 0.3% (3 g / m2), length 2.5 mm, gauge 6, 1/2 Pillar Tricot

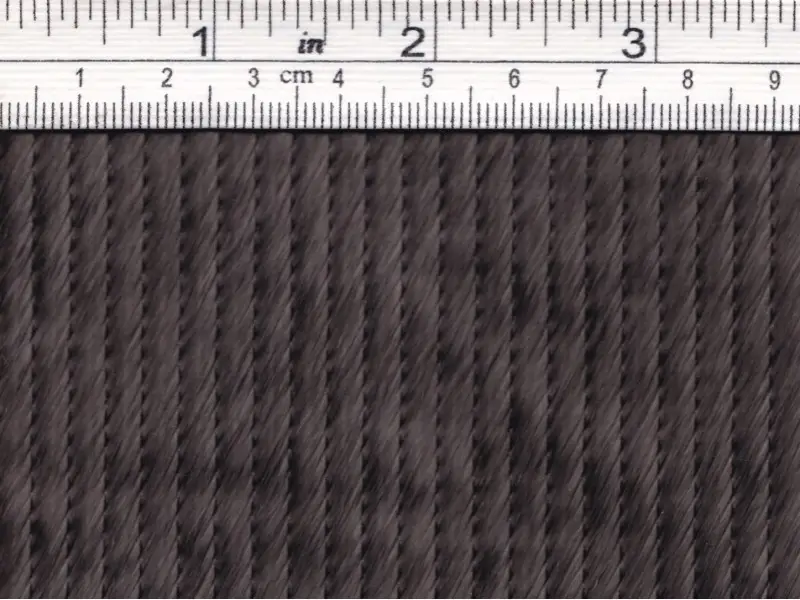

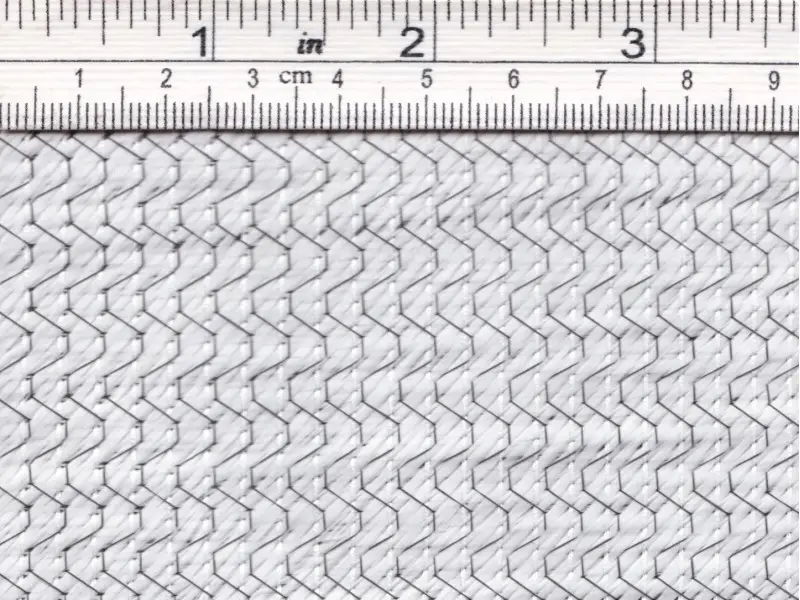

Please click on picture, for a closer view to the fabric's real size.
