carbon glass fabric, carbon fiber 12k, fiberglass e glass 600 tex, carbon glass fabric quadraxial 910 g
TECHNICAL CHARACTERISTICS
Areal weight: 910 g / m2
Weaving style: Quadraxial +45/-45/0/90
Width: 1.27 meters
0 ply: carbon 12K, 800 tex, 63 g / m2, 2 gg + E-glass 600 tex 189 g / m2, 8 gg
-45 ply: E-glass 300 tex 200 g / m2, 12 gg
90 ply: carbon 12K, 800 tex, 63 g / m2, 2 gg + E-glass 300 tex 189 g / m2, 16 gg
+45 ply: E-glass 300 tex 200 g / m2, 12 gg
Stitching fiber: polyester 78dtex, 7 g / m2, 6 gg, 1/2 Pillar Tricot
Weaving style: Quadraxial +45/-45/0/90
Width: 1.27 meters
0 ply: carbon 12K, 800 tex, 63 g / m2, 2 gg + E-glass 600 tex 189 g / m2, 8 gg
-45 ply: E-glass 300 tex 200 g / m2, 12 gg
90 ply: carbon 12K, 800 tex, 63 g / m2, 2 gg + E-glass 300 tex 189 g / m2, 16 gg
+45 ply: E-glass 300 tex 200 g / m2, 12 gg
Stitching fiber: polyester 78dtex, 7 g / m2, 6 gg, 1/2 Pillar Tricot

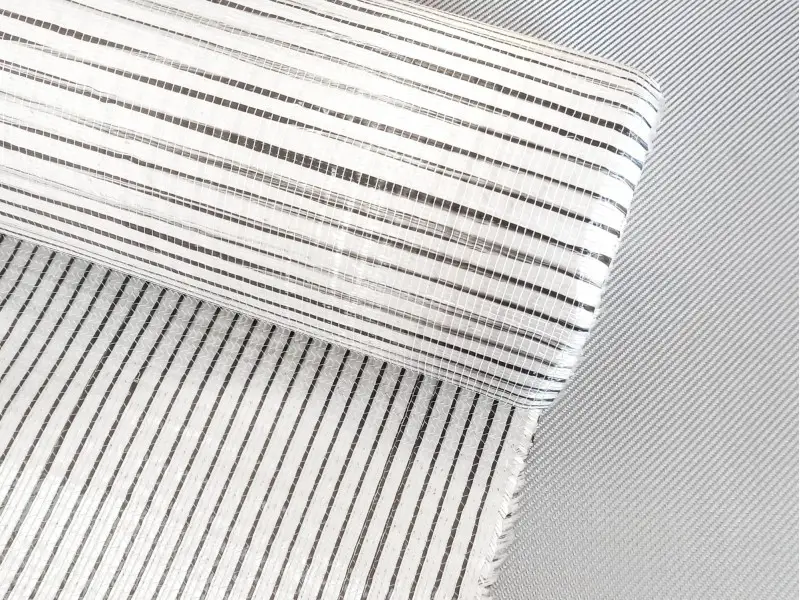

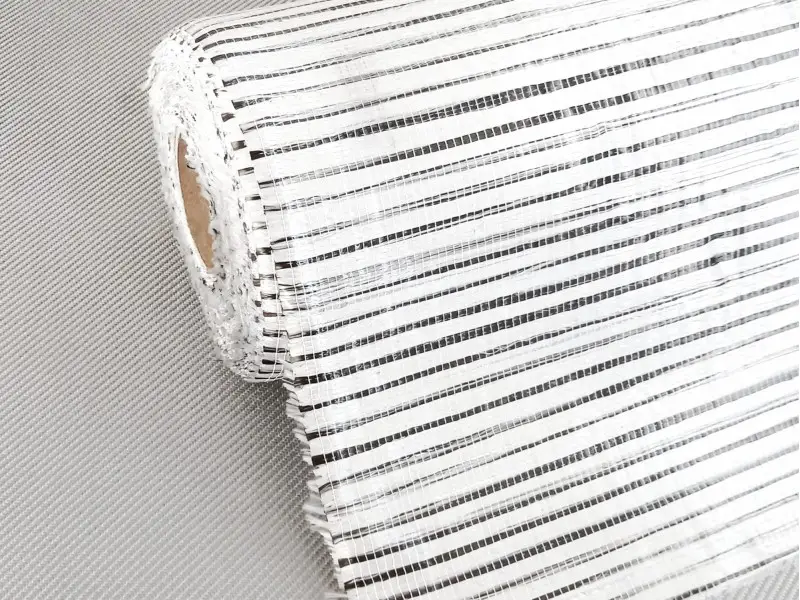

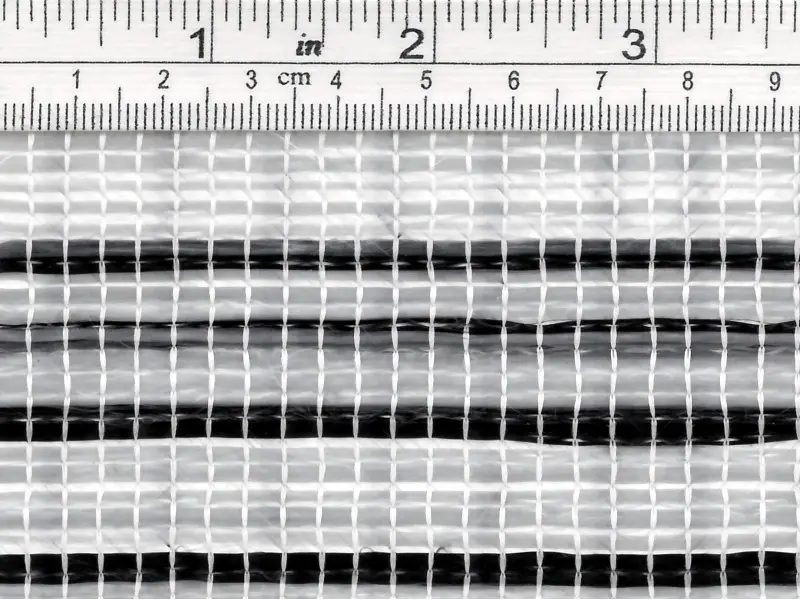

Please click on picture, for a closer view to the fabric's real size.
