Carbon Innegra fabric CI280Τ2
Carbon Innegra fabric CI280Τ2 - Image 2
Carbon Innegra fabric CI280Τ2 - Image 3
Carbon Innegra fabric CI280Τ2 - Image 4
Carbon Innegra fabric CI280Τ2
Carbon Innegra fabric CI280Τ2
$38.00 Add to cart
Carbon vectran fabric CV170P Carbon vectran fabric CV170P $28.68
Carbon metal-wire fabric CM194P Carbon metal-wire fabric CM194P $20.62

Carbon Innegra fabric CI280Τ2

$38.00

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Carbon Innegra fabric CI280Τ2
Carbon Innegra fabric CI280Τ2
$38.00

[wpforms id=”1190″ title=”true” description=”Request a call back”]

carbon innegra fabric, carbon fiber 3k as4, innegra fiber s940, carbon innegra fabric twill 280 g

TECHNICAL CHARACTERISTICS
Areal weight: 280 g / m2
Weaving style: Twill 2Χ2
Available width: 1.00 meter
Warp type of yarn: AS4 3K carbon fiber + innegra S940 fiber
Weft type of yarn:  AS4 3K carbon fiber + innegra S940 fiber
Warp reinforcement ratio: 65% + 35%
Weft reinforcement ratio: 65% + 35%
Warp thread count: 4.9 ends (threads) / cm
Weft thread count: 4.9 ends (threads) / cm

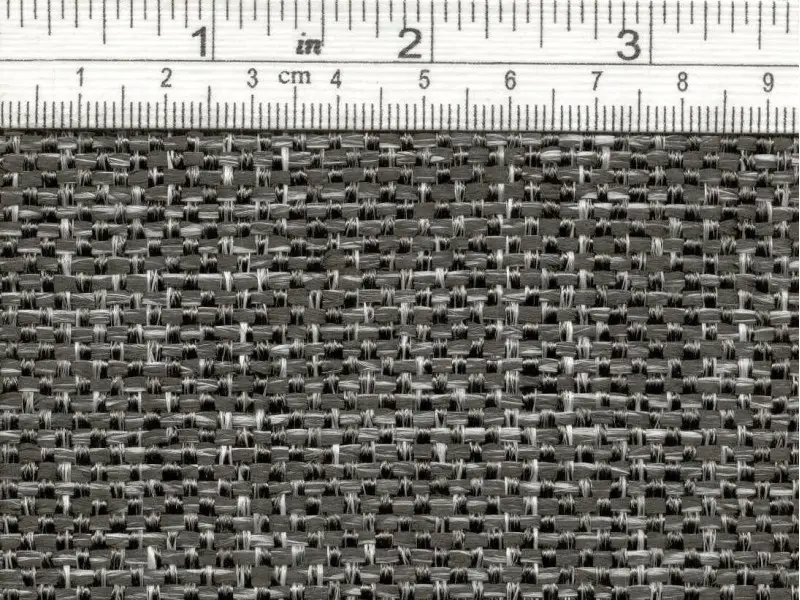

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
