carbon polyester fabric, carbon fiber 3k tr30s, polyester fiber 122, carbon polyester fabric twill 260 g
TECHNICAL CHARACTERISTICS
Areal weight: 257 g / m2
Weaving style: Twill 2X2
Width: 1.27 meters
Weaving style: Twill 2X2
Width: 1.27 meters
Warp type of yarn: 3K TR30S carbon fiber
Weft type of yarn: 3K TR30S carbon fiber + polyester fiber 122 (red) 1100 dtex
Warp reinforcement ratio: 55%
Weft reinforcement ratio: 29% + 16%
Warp thread count: 7.0 ends (threads) / cm
Weft thread count: 3.8+3.8=7.6 ends (threads) / cm
Weft type of yarn: 3K TR30S carbon fiber + polyester fiber 122 (red) 1100 dtex
Warp reinforcement ratio: 55%
Weft reinforcement ratio: 29% + 16%
Warp thread count: 7.0 ends (threads) / cm
Weft thread count: 3.8+3.8=7.6 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF FIBERS USED
Carbon
Tensile strength (MPa): 3620
Tensile modulus (GPa): 245
Polyester
Tensile strength (MPa): 1160
Tensile modulus (GPa): 14

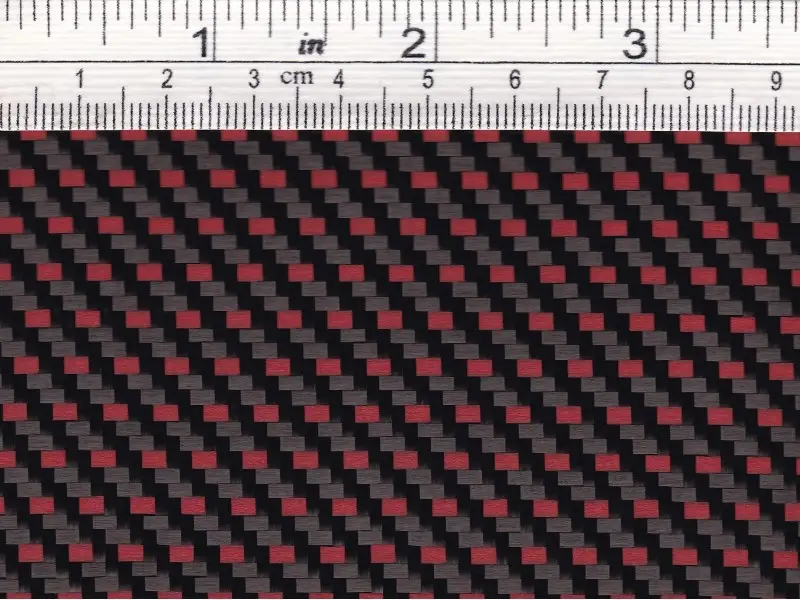

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
