carbon vectran fabric, carbon fiber 3k tr30s, vectran fiber 1670 dtex, carbon vectran fabric plain 170 g
Weaving style: Plain
Available widths: 1.00 meter
Weft type of yarn: 3K TR30S carbon fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 2.5+2.5=5 ends (threads) / cm
Weft thread count: 5 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF FIBERS USED
Carbon
Tensile strength (MPa): 4410
Tensile modulus (GPa): 235
Elongation at break (%): 1.9
Vectran
Tensile strength (MPa): 23-26 g/denier (412-465 ksi)
Tensile modulus (GPa): 525-585 g/denier (9.4-10.5 Msi)
Elongation at break (%): 3.3% – 3.7%

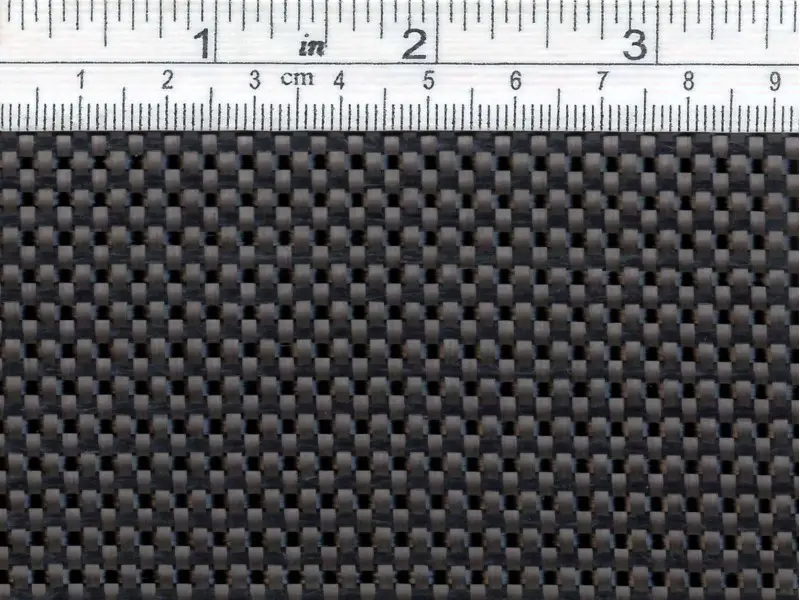

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
DISCLAIMER
All information herein is given for guidance and general information purposes only, represents typical properties, and should not be used for specification limits purposes or basis for design. Fibremax Ltd reserves the right to make modifications on fabrics, change yarns, specifications, and all information given herein, without notice. It is only on written certificates and agreements that we provide our customers with warrants for the quality and/or advise for the suitability of products for particular uses. Data sheets and certificates of conformity are promptly provided upon request with roll serial number, for all 100 lm rolls.
