Fiberglass fabric G025P
$7.39
Fiberglass fabric G025P
Product type: composite reinforcement supplied to the listed weave, areal weight and size. Key specifications: Areal weight: 25 g / m 2; Width: 1.10 meters.
In stock
fiberglass fabric, glass fiber ec5, fiberglass fabric plain 25 g
TECHNICAL CHARACTERISTICS
Areal weight: 25 g / m2
Weaving style: Plain
Width: 1.10 meters
Warp type of yarn: Glass EC5 5.6 fiber
Weft type of yarn: Glass EC5 2.9 fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 22 ends (threads) / cm
Weft thread count: 22 ends (threads) / cm
Weaving style: Plain
Width: 1.10 meters
Warp type of yarn: Glass EC5 5.6 fiber
Weft type of yarn: Glass EC5 2.9 fiber
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 22 ends (threads) / cm
Weft thread count: 22 ends (threads) / cm

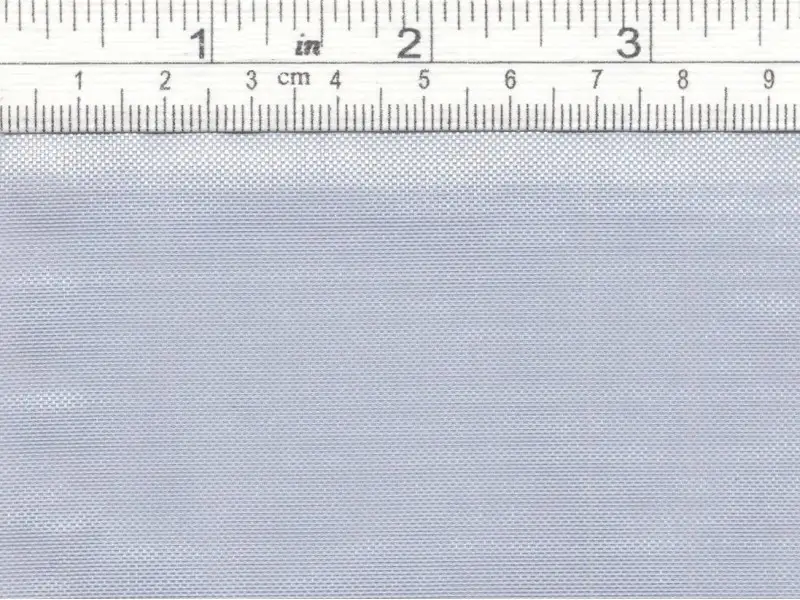

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
| Weight | 25 g |
|---|---|
| Dimensions | 110 × 10 × 10 cm |
