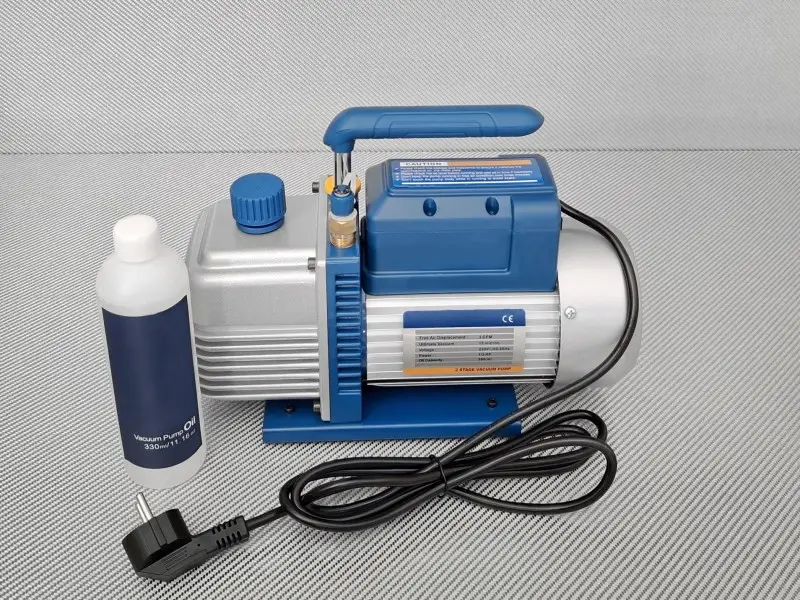

Vacuum pump, medium

High-performance medium vacuum pump, wet (oil-lubricated), dual-stage, 220 V. It is widely used in vacuum bagging, resin infusion, and composite manufacturing. It can also be used as the pre-pump for various types of high vacuum equipment. Lubricating oil included.

Technical characteristics
Flow rate: 3 CFM or 70 l/min
Ultimate vacuum: 15 micron or 2×10-1 Pa
Vacuum level (%): 99.997
Power: 1/3 HP
Inlet port: 1/4″ & 3/8” Flare
Oil capacity: 200 ml
Weight: 8.6 kg
Dimensions: 315 X 124 X 240 mm
Limited warranty: 1 year from date of purchase.

Features & Benefits
• Dual-stage rotary-vane design that optimizes vacuum performance and pump speed, reducing evacuation time.
• Lightweight construction with an aluminum housing and a metal base that enhances durability, and a thermal protector ensuring steady, safe operation.
• The integrated pump body ensures reliability and easy maintenance.
• It features a built-in oil pump cycling system for proper lubrication and sealing and a large sight glass designed to prevent oil depletion.
• The anti-suckback feature maintains system purity by preventing oil backflow.
• Utilized across automotive, aerospace, UAVs, and marine industries, vacuum pumps deliver superior surface finishes and high-quality applications.
