This fabric is specially made for ballistic protection.
TECHNICAL CHARACTERISTICS
Areal weight: 190 g / m2
Weaving style: Plain
Width: 1.30 meters
Warp type of yarn: 2040 aramid fiber, 1100 dtex
Weft type of yarn: 2040 aramid fiber, 1100 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 8.5 ends (threads) / cm
Weft thread count: 8.5 ends (threads) / cm
Areal weight: 190 g / m2
Weaving style: Plain
Width: 1.30 meters
Warp type of yarn: 2040 aramid fiber, 1100 dtex
Weft type of yarn: 2040 aramid fiber, 1100 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 8.5 ends (threads) / cm
Weft thread count: 8.5 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF 2040 ARAMID FIBER, 1100 dtex
Tensile strength (MPa): 2987
Tensile modulus (GPa): 91
Elongation at break (%): 3.10
Indicative ballistic results: NIJ 0101.04 level IIIA, 35 layers

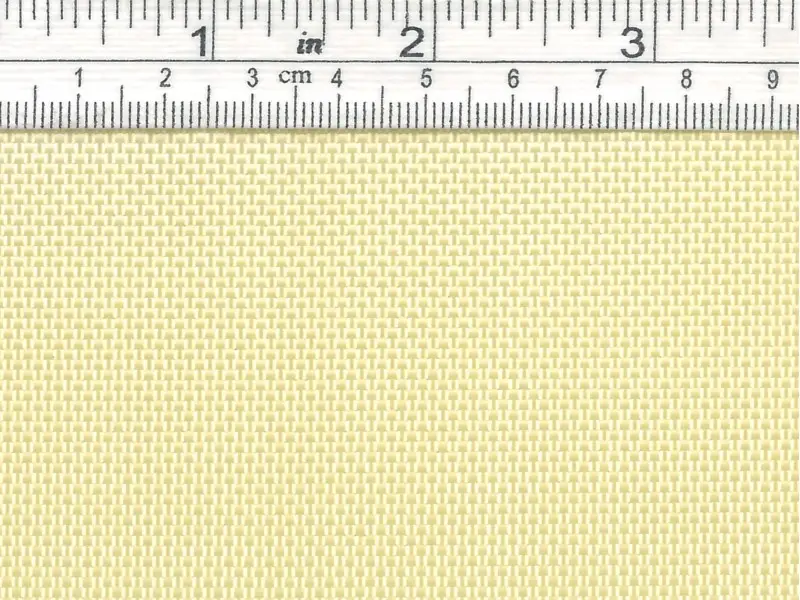

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
