aramid ballistic fabric, kevlar fiber k129 3140 dtex, kevlar fabric plain 455 g
This fabric is specially made for ballistic protection
TECHNICAL CHARACTERISTICS
Areal weight: 410 g / m2
Weaving style: Plain
Available widths: 1.00 meter
Warp type of yarn: Aramid fiber Kevlar 129, 3140 dtex
Weft type of yarn: Aramid fiber Kevlar 129, 3140 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.4 ends (threads) / cm
Weft thread count: 6.4 ends (threads) / cm
Areal weight: 410 g / m2
Weaving style: Plain
Available widths: 1.00 meter
Warp type of yarn: Aramid fiber Kevlar 129, 3140 dtex
Weft type of yarn: Aramid fiber Kevlar 129, 3140 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 6.4 ends (threads) / cm
Weft thread count: 6.4 ends (threads) / cm
Indicative ballistic results (V50 with fragment): 14 layers, 530 m/s

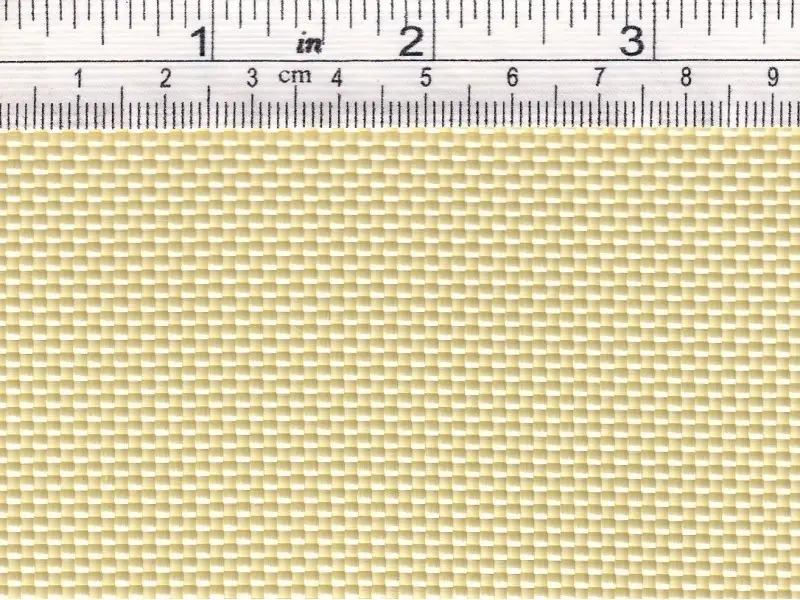

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
