aramid fabric, aramid fiber af3000, aramid fabric twill 170 g
TECHNICAL CHARACTERISTICS
Areal weight: 170 g / m2
Weaving style: Twill 2X2
Width: 1.20 meters
Warp type of yarn: AF3000 aramid fiber, 1600 dtex
Weft type of yarn: AF3000 aramid fiber, 1600 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 5.3 ends (threads) / cm
Weft thread count: 5.3 ends (threads) / cm
Weaving style: Twill 2X2
Width: 1.20 meters
Warp type of yarn: AF3000 aramid fiber, 1600 dtex
Weft type of yarn: AF3000 aramid fiber, 1600 dtex
Warp reinforcement ratio: 50%
Weft reinforcement ratio: 50%
Warp thread count: 5.3 ends (threads) / cm
Weft thread count: 5.3 ends (threads) / cm
TYPICAL MECHANICAL PROPERTIES OF AF3000 ARAMID FIBER, 1600 dtex
Tensile strength (MPa): 3050
Tensile modulus (GPa): 114
Elongation at break (%): 2.70

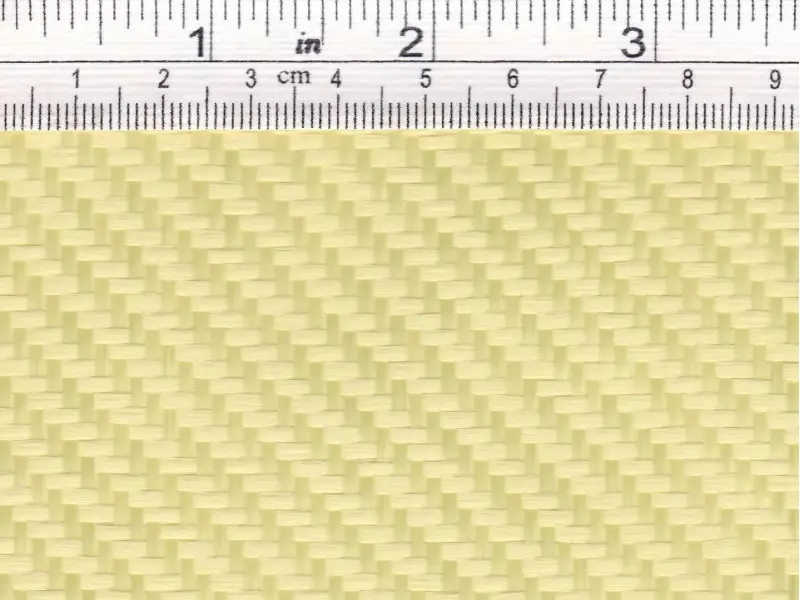

Please click on picture, for a closer view to the fabric's real size. To realize actual size with precision please observe the threads / cm feature mentioned above.
