aramid fabric, aramid fibre 2200 3220 dtex, aramid fabric biaxial 450 g
TECHNICAL CHARACTERISTICS
Areal weight: 465 g / m2
Weaving style: Biaxial +45 / -45
Width: 1.27 meters
Weaving style: Biaxial +45 / -45
Width: 1.27 meters
+45 type of yarn: 2200 aramid fiber, 3220 dtex
-45 type of yarn: 2200 aramid fiber, 3220 dtex
+45 reinforcement ratio: 48.8% (227 g / m2)
-45 reinforcement ratio: 48.8% (227 g / m2)
Stitching fiber: polyester 78dtex, 2.4% (9 g / m2)
-45 type of yarn: 2200 aramid fiber, 3220 dtex
+45 reinforcement ratio: 48.8% (227 g / m2)
-45 reinforcement ratio: 48.8% (227 g / m2)
Stitching fiber: polyester 78dtex, 2.4% (9 g / m2)
TYPICAL MECHANICAL PROPERTIES OF 2200 ARAMID FIBER, 3220 dtex
Tensile strength (MPa): 2930
Tensile modulus (GPa): 102
Elongation at break (%): 2.9
Tensile strength (MPa): 2930
Tensile modulus (GPa): 102
Elongation at break (%): 2.9

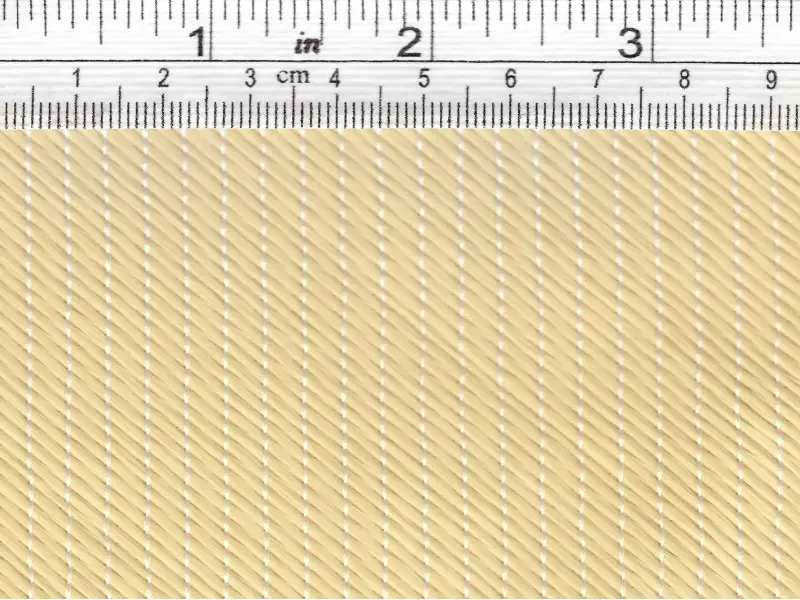

Please click on picture, for a closer view to the fabric's real size.
