Carbon Braided Sleeves: Advanced Composite Solutions for Industrial Applications
Carbon braided sleeves represent the pinnacle of modern composite technology, offering exceptional strength-to-weight ratios and versatile application possibilities. At Bulk Composites, we provide premium-quality carbon fiber sleeves designed for professionals in aerospace, automotive, marine, and sporting goods industries. Our braided carbon products combine durability with ease of use, making them the preferred choice for engineers and manufacturers seeking lightweight yet robust reinforcement solutions.
What Are Carbon Braided Sleeves?

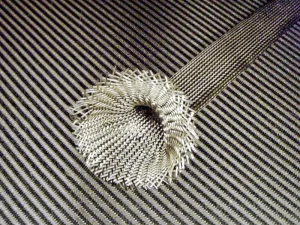

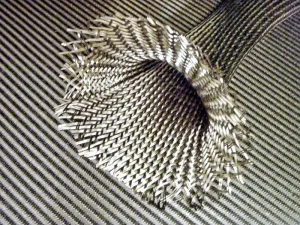

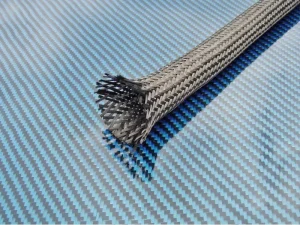

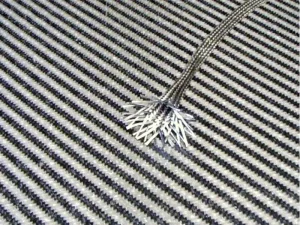

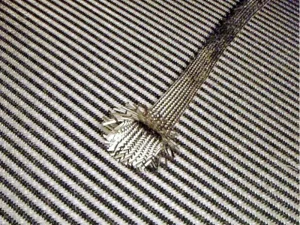

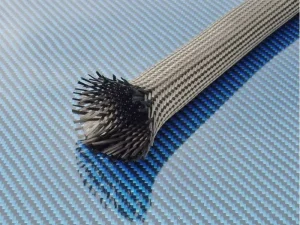

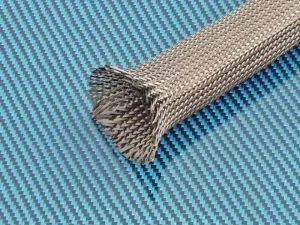

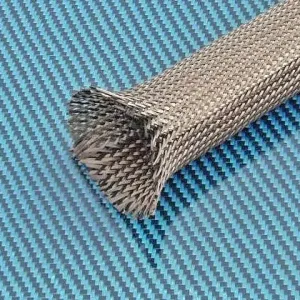

Carbon braided sleeves are tubular structures created by interweaving carbon fiber tows in a specific pattern. Unlike traditional woven fabrics, these sleeves feature a biaxial construction that allows them to expand radially while maintaining structural integrity. This unique property makes carbon fiber sleeves ideal for covering mandrels or cores with varying geometries.
The braiding process creates a continuous tubular structure without seams, resulting in uniform strength distribution throughout the material. When combined with appropriate resin systems, carbon braided sleeves transform into exceptionally strong composite components with excellent fatigue resistance and dimensional stability.
Our dry braided carbon fiber sleeves are available in various diameters and weave patterns, including the popular biaxial +/-45° orientation that provides optimal torsional strength and impact resistance.
Find Your Perfect Carbon Sleeve Solution
Browse our complete selection of carbon braided sleeves in various diameters and configurations.
Explore Our CatalogKey Features and Benefits of Carbon Braided Sleeves
Exceptional Strength-to-Weight Ratio
Carbon fiber offers up to 3x the strength of aluminum while weighing approximately 1.5x less, making our braided sleeves ideal for weight-critical applications where performance cannot be compromised.
Superior Conformability
Our carbon braided sleeves expand up to 25% of their nominal diameter and can reduce to approximately 60% of their original size, allowing them to conform perfectly to complex geometries and tapered structures.
Uniform Fiber Distribution
The braiding process ensures consistent fiber orientation throughout the sleeve, eliminating weak points and providing predictable, reliable performance in demanding applications.
Advantages of Carbon Braided Sleeves
- High thermal resistance when combined with appropriate resin systems
- Excellent vibration damping properties
- Superior corrosion resistance compared to metal alternatives
- Ability to create complex shapes with minimal tooling
- Consistent quality and repeatable manufacturing results
- Reduced overall system weight leading to improved efficiency
Considerations
- Requires proper resin impregnation for optimal performance
- Initial cost higher than some traditional materials
- Special handling recommended to maintain fiber integrity
- Not returnable once purchased (industry standard)
Need Technical Assistance?
Our composite specialists can help you select the right carbon braided sleeve for your specific application.
Contact Our ExpertsTechnical Specifications
Our carbon braided sleeves are available in multiple configurations to meet diverse application requirements. All specifications are carefully controlled to ensure consistent performance and reliability.
| Product Code | Diameter (inches) | Weight (gsm) | Fiber Orientation | Material | Price Per Yard |
| CBS-100 | 1.00″ | 281 | Biaxial +/-45° | Carbon Fiber | $6.50 |
| CBS-150 | 1.50″ | 281 | Biaxial +/-45° | Carbon Fiber | $7.25 |
| CBS-200 | 2.00″ | 281 | Biaxial +/-45° | Carbon Fiber | $8.15 |
| CBS-300 | 3.00″ | 281 | Biaxial +/-45° | Carbon Fiber | $10.75 |
| CBS-400 | 4.00″ | 281 | Biaxial +/-45° | Carbon Fiber | $14.50 |
Note: All carbon braided sleeves are sold by the linear yard. Quantity discounts are available for bulk orders. Please contact our sales team for custom diameters, weights, or fiber orientations not listed above.
Ready to Order?
Our carbon braided sleeves are sold by the yard and ship the next business day for in-stock items.
Shop Carbon Braided SleevesCommon Applications for Carbon Braided Sleeves
Aerospace
- Structural reinforcement for composite airframes
- Control surface components and linkages
- Unmanned aerial vehicle (UAV) structural elements
- Satellite deployment mechanisms
Automotive
- Drive shafts and torque tubes
- Roll cage reinforcement
- Suspension components
- Interior trim and structural elements
Sporting Goods
- Hockey stick shafts and blades
- Fishing rod blanks
- Golf club shafts
- Bicycle frame components
Marine
- Mast reinforcement
- Boom structures
- Tiller arms and rudder components
- Hull stiffening elements
Medical
- Prosthetic limb components
- Orthotic devices
- Surgical instruments
- Imaging equipment structural elements
Industrial
- Robotic arm components
- High-speed machinery parts
- Vibration damping structures
- Protective coverings for electrical components
“The versatility of carbon braided sleeves has revolutionized our product development process. We can now create complex composite structures with consistent performance characteristics that would be impossible with traditional materials.”
Discover Industry-Specific Solutions
Learn how our carbon braided sleeves can enhance your specific application.
Request Application ConsultationInstallation and Handling Tips
Working with carbon braided sleeves requires attention to detail to achieve optimal results. Follow these best practices to ensure successful implementation in your composite projects:
Preparation
- Calculate the required sleeve length, adding 10-15% extra to account for diameter expansion when fitting over mandrels or cores.
- Ensure your mandrel or core is properly prepared with an appropriate release agent to prevent adhesion.
- Wear gloves when handling carbon fiber to prevent skin irritation and contamination of the fibers.
Installation
- Slide the sleeve over your mandrel or core, ensuring even tension throughout.
- For complex shapes, gradually work the sleeve into position rather than forcing it.
- Use heat shrink tape or similar methods to compress the sleeve if needed for your application.
Resin Application
- Select an appropriate resin system based on your application requirements (temperature resistance, cure time, etc.).
- Apply resin evenly using techniques such as vacuum infusion, hand lay-up, or resin transfer molding.
- Follow the resin manufacturer’s recommendations for mixing ratios, working time, and cure schedules.
Important: Carbon fiber conducts electricity. Take appropriate precautions when using carbon braided sleeves near electrical components or in applications where electrical conductivity could be a concern.
Need Installation Guidance?
Our technical team can provide detailed advice for your specific application.
Get Expert SupportWhy Choose Bulk Composites for Your Carbon Braided Sleeves
At Bulk Composites, we’ve established ourselves as a trusted supplier of high-quality composite materials for professionals across multiple industries. When you choose our carbon braided sleeves, you benefit from:
- Consistent Quality: Our rigorous quality control processes ensure that every yard of carbon braided sleeve meets exacting standards for fiber alignment, weight, and dimensional accuracy.
- Technical Expertise: Our team includes composite specialists with extensive experience across aerospace, automotive, and industrial applications.
- Competitive Pricing: Our volume purchasing power allows us to offer premium carbon braided sleeves at competitive prices, with additional discounts for bulk orders.
- Fast Shipping: In-stock items ship the next business day, minimizing project delays.
- Custom Solutions: Need a specific diameter, weave pattern, or fiber orientation? We can develop custom solutions to meet your exact requirements.
What is your return policy for carbon braided sleeves?
In line with industry standards, we do not accept returns on carbon braided sleeves once purchased. This policy exists because these specialized materials can be easily damaged during handling. We recommend contacting our technical team before purchase if you have any questions about suitability for your application.
Do you offer quantity discounts?
Yes, we offer tiered pricing based on order quantity. Discounts typically begin at 10+ yards and increase at 25+ yards. For very large orders, please contact our sales team for custom quotations.
Can I request a sample before ordering?
We offer sample packs for qualified business customers to evaluate our carbon braided sleeves before committing to larger orders. Please contact our sales team to discuss your requirements and arrange for samples.
Ready to Experience the Bulk Composites Difference?
Browse our complete selection of carbon braided sleeves and other composite materials.
Shop Carbon Braided Sleeves Contact Our TeamElevate Your Composite Projects with Premium Carbon Braided Sleeves
Carbon braided sleeves represent an optimal solution for engineers and manufacturers seeking to create lightweight, high-strength composite structures with complex geometries. At Bulk Composites, we’re committed to providing you with the highest quality materials and the technical support you need to succeed with your composite projects.
Whether you’re developing aerospace components, high-performance sporting goods, or industrial applications, our carbon braided sleeves deliver the performance, consistency, and value you require. Browse our selection today or contact our team to discuss your specific requirements.
